Description

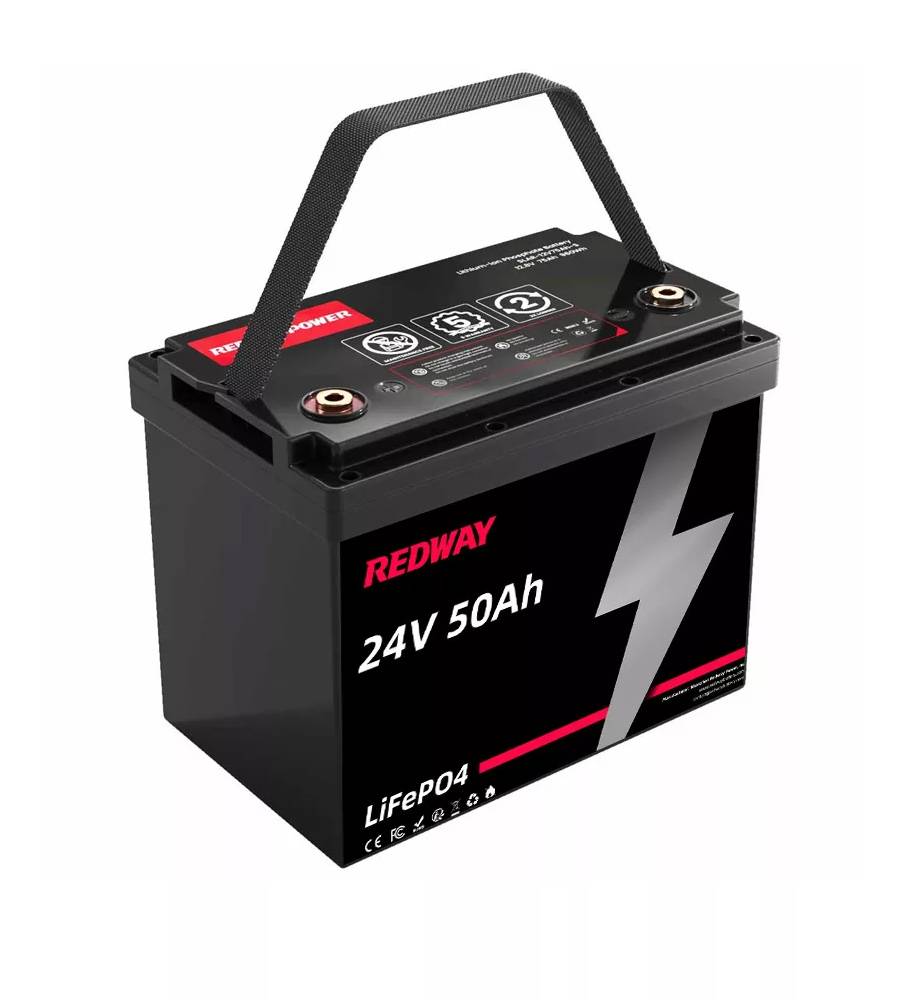

Our 24V 50Ah LiFePO4 Battery is a high – performance energy storage solution. Ideal for RVs, marine, and solar systems, it combines advanced tech with reliability, perfect for OEM and wholesale buyers.
Key Features
- High Energy Capacity: With a nominal voltage of 25.6V and 50Ah capacity, it offers 1280Wh energy output to power various applications.
- Long Cycle Life: Designed for over 6000 cycles at 80% DoD, reducing long – term replacement costs.
- Integrated BMS Protection: A built – in Battery Management System safeguards against overcharging, over – discharging, and short circuits.
- Wide Operating Temperature Range: Works well from -20¡ãC to 60¡ãC, suitable for diverse environments.
- Compact and Lightweight Design: Weighing about 10 kg (22 lbs) and with dimensions of 260 x 168 x 210 mm, it’s easy to install and transport.
Product Description
This 24V 50Ah LiFePO4 Battery is engineered to meet modern energy demands. Its high – quality LiFePO4 cells ensure safety and stability during discharge. Key specs include a 25.6V nominal voltage, 1280Wh energy output, and it can operate in a wide temperature range. Charging is possible from 0¡ãC to 60¡ãC, and discharging from – 20¡ãC to 60¡ãC. The integrated smart BMS monitors voltage and temperature to prevent hazards. It supports a wide range of applications and has a long cycle life. Optional Bluetooth connectivity allows for real – time monitoring, and it comes in customizable colors.
The 24V 50Ah LiFePO4 battery is a high-performance lithium iron phosphate battery designed for long life and superior safety. It features advanced battery management systems that protect cells from overcharge, over-discharge, and short circuits. Ideal for solar energy storage, electric vehicles, and backup power, this battery delivers reliable, efficient power with a lifespan exceeding 3000 cycles. Redway ESS manufactures premium rack-mounted versions that combine durability with eco-friendly technology.
What Is a 24V 50Ah LiFePO4 Battery and How Does It Work?
A 24V 50Ah LiFePO4 battery consists of lithium iron phosphate cells arranged to provide a nominal voltage of 25.6 volts and a capacity of 50 amp-hours, delivering approximately 1280 watt-hours of energy. It operates by lithium ions shuttling between cathode and anode during charge and discharge, offering stable voltage output, high energy density, and resistance to thermal runaway.
What Are the Key Features and Specifications of a 24V 50Ah LiFePO4 Battery?
-
Nominal Voltage: 25.6V
-
Capacity: 50Ah (1280Wh)
-
Cycle Life: Over 3000 cycles at 80% depth of discharge
-
Maximum Continuous Discharge Current: 50-70A
-
Peak Discharge Current: Up to 140A (short bursts)
-
Charge Voltage: 29.2V max
-
Operating Temperature: Charge 0°C to 45°C, Discharge -20°C to 60°C
-
Weight: Approximately 10.4 to 13.5 kg
-
Dimensions: Roughly 260-330mm (L) x 168-220mm (W) x 165-230mm (H)
-
Cell Type: Typically cylindrical cells with integrated BMS
How Does the Battery Management System (BMS) Protect and Optimize the Battery?
The BMS continuously monitors cell voltages, current, temperature, and state of charge to prevent overcharging, deep discharging, short circuits, and overheating. It balances the cells to maintain uniform performance, extending battery life and ensuring safety. Redway ESS integrates advanced BMS technology with optional Bluetooth or CAN communication for remote monitoring.
What Advantages Do LiFePO4 Batteries Offer Compared to Other Battery Types?
-
Longer lifespan with 3000+ cycles
-
High safety due to stable chemistry and low risk of thermal runaway
-
Lightweight and compact compared to lead-acid batteries
-
Fast charging capability
-
Maintenance-free operation with no memory effect
-
Environmentally friendly with recyclable materials
Which Applications Are Best Suited for 24V 50Ah LiFePO4 Batteries?
These batteries are ideal for:
-
Solar energy storage systems
-
Electric scooters, bikes, and mobility devices
-
Backup power for homes and businesses
-
Marine and recreational vehicles
-
Robotics and automation systems
How Long Can You Expect the Cycle Life of a 24V 50Ah LiFePO4 Battery to Be?
With proper use and maintenance, a 24V 50Ah LiFePO4 battery can last more than 3000 full charge-discharge cycles at 80% depth of discharge, translating to 8-10 years of typical use. Cycle life can extend further under moderate discharge conditions.
How Should You Properly Charge and Maintain a 24V 50Ah LiFePO4 Battery?
-
Use a charger designed for LiFePO4 chemistry with a max charge voltage of 29.2V
-
Avoid deep discharges below 20V
-
Store batteries in cool, dry environments
-
Regularly inspect terminals and connections
-
Monitor battery health via BMS or compatible apps
How Does Internal Resistance Impact Battery Performance?
Internal resistance affects how efficiently the battery delivers current. Lower internal resistance means less heat generation and higher efficiency, especially under high loads. LiFePO4 batteries typically have low internal resistance, contributing to better performance and longevity.
Internal Resistance Comparison Chart
| Battery Type | Internal Resistance (mΩ) | Impact on Performance |
|---|---|---|
| Lead Acid | 10-30 | Higher heat loss, less efficient |
| Li-ion (NMC/NCA) | 5-15 | Moderate heat loss, good efficiency |
| LiFePO4 (Redway ESS) | 2-8 | Low heat loss, excellent efficiency |
What Environmental Benefits Do LiFePO4 Batteries Provide?
LiFePO4 batteries are environmentally friendly because they:
-
Contain no toxic heavy metals
-
Are recyclable and have long service lives reducing waste
-
Support renewable energy integration
-
Have lower carbon footprints in manufacturing and use
How Does Redway ESS Ensure the Quality and Reliability of Their Batteries?
Redway ESS employs stringent quality control, premium cylindrical cells, and advanced BMS integration. Their batteries undergo rigorous testing for safety, performance, and durability. Certifications like CE, RoHS, and UN38.3 back their compliance with international standards. Redway ESS also offers customization and excellent after-sales support to ensure customer satisfaction.
